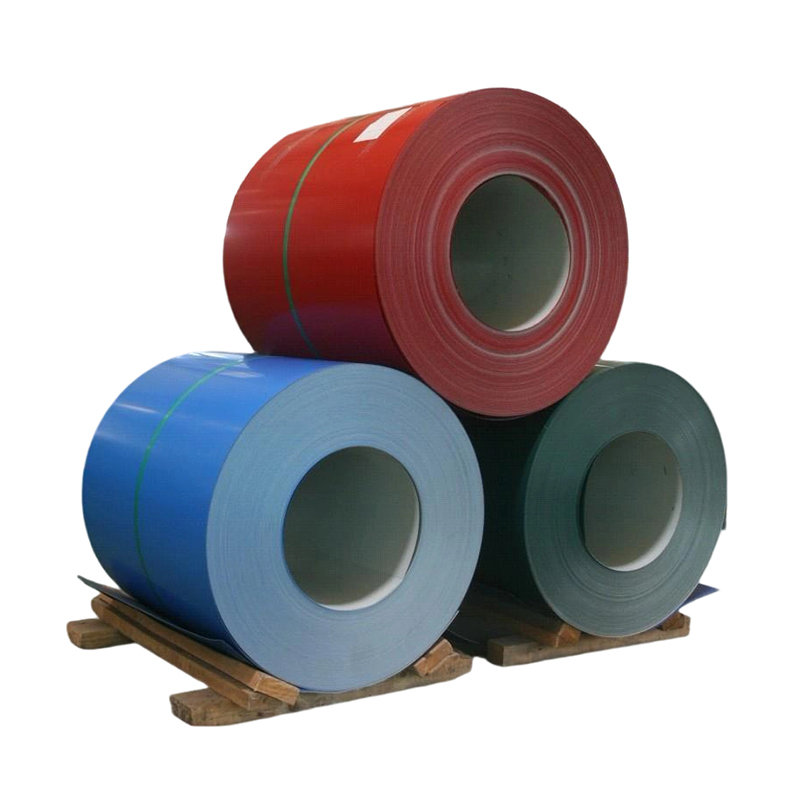

Prepainted Galvalume Coil
Reliable Weather & Corrosion Resistance: PE coating provides solid protection against corrosion, fading, and chalking, ensuring stable performance in general outdoor environments.
Versatile Color & Gloss Options: Available in multiple standard colors with full customization based on RAL color cards; supports low, medium, and high gloss levels for diverse architectural needs.
Cost-Effective & Widely Applicable: With balanced durability and affordability, PE color coated sheets are widely used in roofing, wall cladding, public facilities, and large-scale international projects.

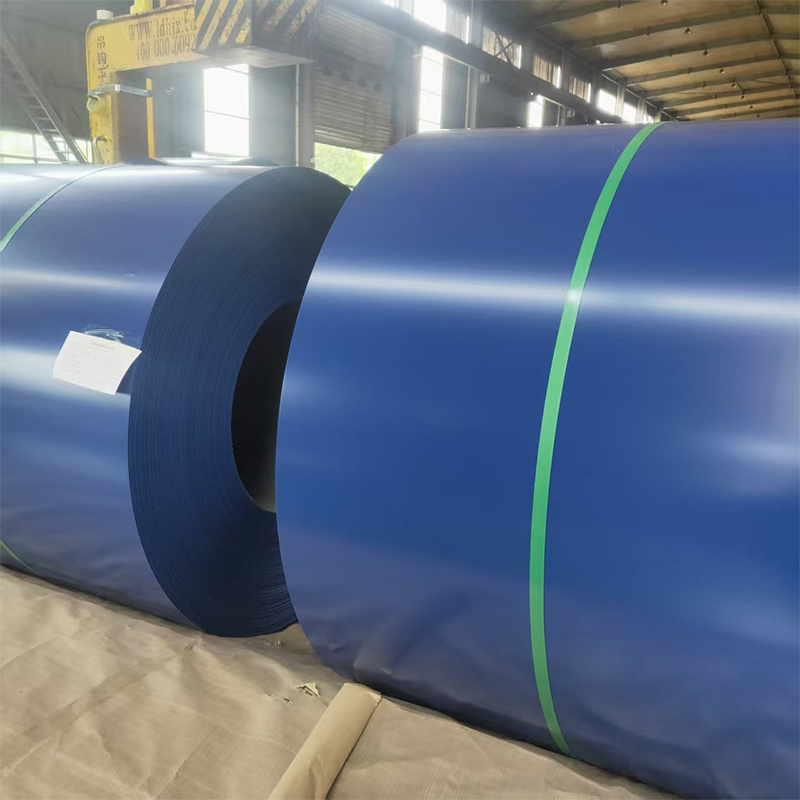

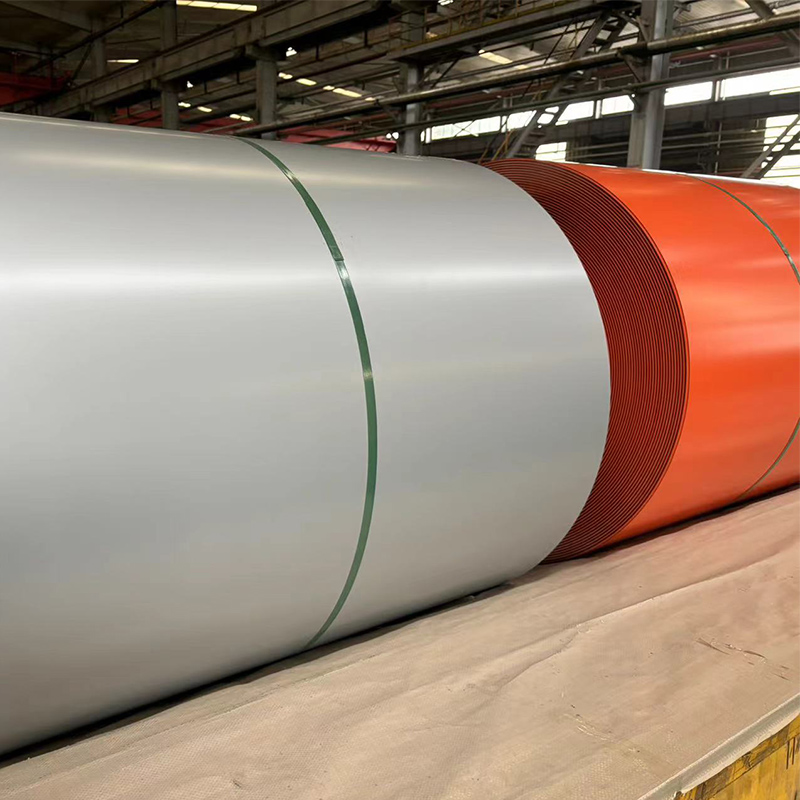

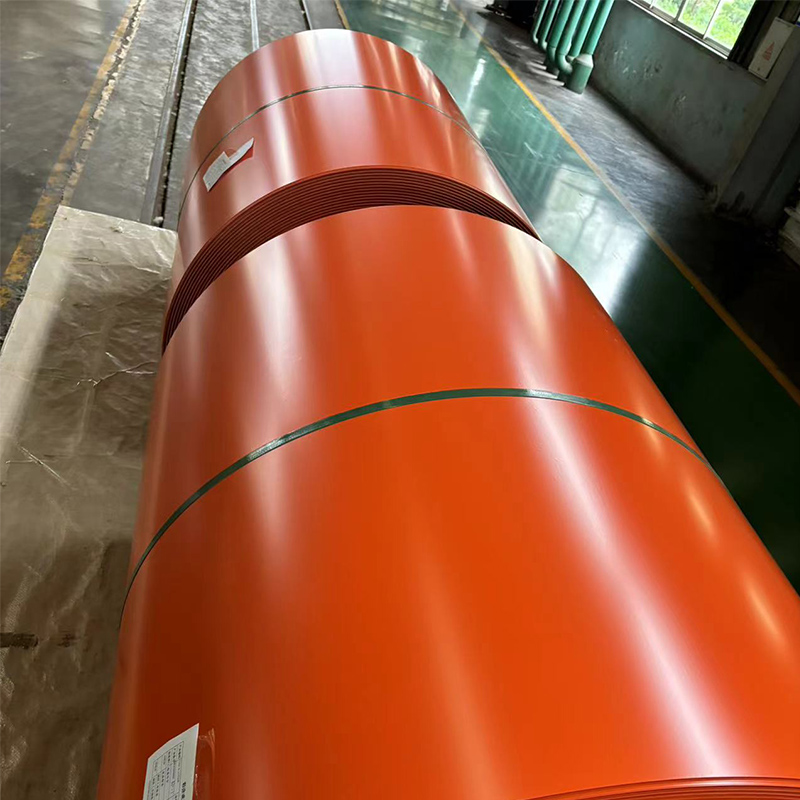

Pre Painted Galvalume Steel
Product Advantages
Excellent corrosion resistance; Outstanding anti-fading and anti-chalking properties; Superior weather resistance; Excellent flexibility and processing performance.
Product Width
650mm-1250mm
Product Color
White Gray, Sea Blue, Scarlet Red, Wall Gray, and Silver Gray are standard colors. Other colors can be customized according to customer requirements, referencing RAL color cards and standard color cards.
Coating System
Produced using a two-coat-two-bake process, customizable based on customer needs.
Coating Performance
Pencil Hardness: ≥ F
Gloss (%): Low ≤40, Medium 40-70, High >70
T-Bend: Low ≤5T, Medium ≤3T, High ≤1T
MEK (double rubs): ≥100
Reverse Impact (J): ≥9
Salt Spray Resistance (h): ≥1000
Product Strength Grades
G250 / G280 / G300 / G320 / G345 / G350 / G550
Performance Test
Test Item | Test Result |
Pencil Hardness: GB/T13448 GB/T12754 | Min. F |
T-Bend: GB/T13448 | Max. 4T |
Cross-Cut Adhesion: GB/T13448 | No peeling of paint film |
Reverse Impact: GB/T13448 | Min. 9J |
Chemical Resistance: GB/T13448 | No fading or bubbling |
Humidity Resistance: 95%-100% Relative Humidity, 1000 hours GB/T13448 | No peeling of paint film |
Salt Spray Test: 1000 hours ASTM B117 | Undercut ≤ 3mm |
UV Accelerated Aging Test: 1500 hours GB/T13448 | Color Difference: ≤ ΔE 3, Chalking: < 2 |
Water Immersion Test: 38℃ 168 hours GB/T13448 | Essentially no color difference and no blistering |
Abrasion Resistance: GB/T13448 | Total Sand: 35±5 Liters |
Exposure Test: GB/T13448 | Coating Integrity: 10 years |
Prepainted production lines
There are 2 prepainted production lines, mainly producing mid-to-high-end building material sheets, home appliance color-coated sheets and other products. The machine set is developed by a well-known domestic design institute. The transmission equipment and power process equipment in the production line are all highly automated to achieve precise control in production. In order to ensure the adhesion effect and surface quality of the paint coating, multi-stage water washing is adopted, which greatly improves the surface quality of the color-coated sheet. The production line is connected to the curing furnace and equipped with a high-efficiency and energy-saving fresh air system and a waste heat utilization system to make full use of energy and protect the environment.
Available range and production capacity
Category: | Specification | Category: | Specification |
Production Line: | Color Coating Line | Process Speed: | 120 m/min |
Technology: | Double Coating & Double Baking | Thickness (mm): | 0.12-1.0 |
Substrate: | GI, GL, ZAM | Width (mm): | 650-1250 |
Coil ID (mm): | 508/610 | Annual Capacity (MT): | 300,000 |

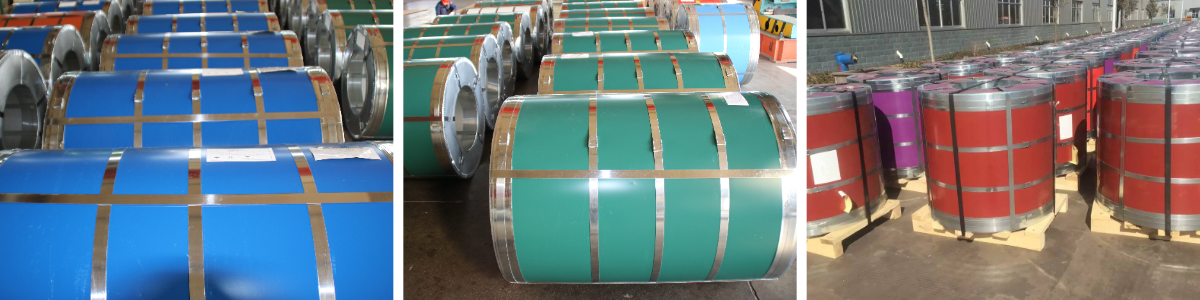

Product Packaging
Product Application Scenarios
|
|
|
|
Hamad International Airport, Qatar | Jakarta-Bandung High-Speed Railway Project, Indonesia | Lagos International Airport | Indofood Sukses Makmur (Indofood) |
|
|
|
|
Wuhan Leishenshan Hospital | Wuhan Huoshenshan Hospital | Tsing Yi Mobile Cabin Hospital, Hong Kong | San Tin Mobile Cabin Hospital, Hong Kong |
